125L flow per minute Plate and Frame type oil filtration machines specification:
JLJG series frame oil filter is mainly designed for the power plants, power stations, industrial and mining enterprises, lubricants warehouse, tractor stations, petroleum, chemical industry, metallurgy, national defense units, it mainly used to purify transformer oil, turbine oil, engine oil, diesel, kerosene, aviation hydraulic oil, oil in the water and impurities and also use stainless steel as a vegetable oil filter.

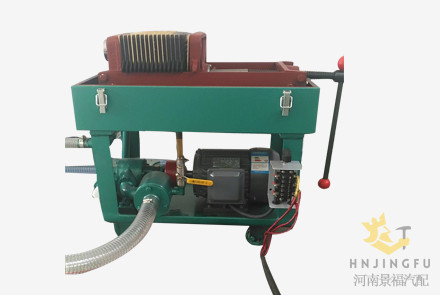

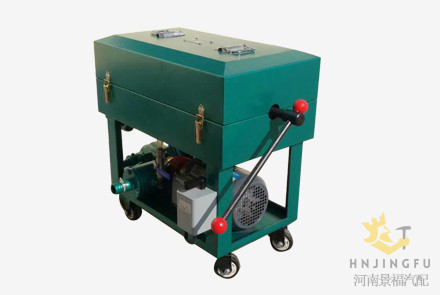

Oil filter machine Pictures: Why Choose us? Packing details Factory photo Inquiry
| Model | JLJG-125 |
| Flow Rate(L/Min) | 125 |
| Filtration Area(m²) | 1.8 |
| Working Pressure(Mpa) | 2.5*105 |
| Maximum Working Pressure(Mpa) | 5.88*105 |
| Oil viscosity(Cst) | ≤33 |
| Filtration accuracy(μm) | ≤20 |
| Quantity of Filter frame | 13 |
| Quantity of Filter board | 14 |
| Filter Paper size(mm) | 300*300 |
| Motor Power(KW) | 3 |
| Inlet Diameter(Inch) | 2 |
| Outlet Diameter(Inch) | 1.5 |
| Oil Purifier Machine Weight(Kg) | 120 |
1. Fast and easy replacement of the filter paper.
2. Simple structure, easy to operate.
3. Low running costs.
Oil purifier purification machine Packing:Wooden box.
